11/70 System
This 11/70 is actually a DS570. Rather than being in H960 6-foot
racks, it is contained in 5-foot "corporate" cabinets. Also
rather than being the traditional "red and purple" the color is white
and blue.
The current configuration is:
- 11/70 CPU
- FP11-C Floating point
- 4MB PEP-70 & Hypercache
- 2 Emulex SC72 SMD controllers
- 1 RH70 massbus controller
- 3 DL11 SLUs
- 1 DZ11 (8 port Async)
- 1 DELUA ethernet
- 1 RL11 controller
- 1 TU80 controller
- 1 LP11 controller
- 1 RK11 controller
Peripherals currently attached:
- 2 Fujitsu Eagle SMD drives each emulating 2 RP06 (176MB/ea)
drives (total of 4 RP06s)
- 2 CDC 9766 SMD drives emulating an RM05 (250MB/ea)
- 1 RL01 (5MB)
- 1 RL02 (10MB)
- 1 RK05J (2.5MB)
- 1 TU80 1600bpi 9-track tape drive
- 1 LP25 line printer
- LA120 Decwriter III (console)
- various terminals including DEC VT220, DEC VT320, LSI ADM5, Heath
H19
Soon to be attached:
- TS11 1600bpi 9-track tape drive
- CR11 card reader
- RX02 floppy drives
The system is currently running BSD 2.11. While it is running
BSD, it is on the internet and is known as neptune.shiresoft.com.

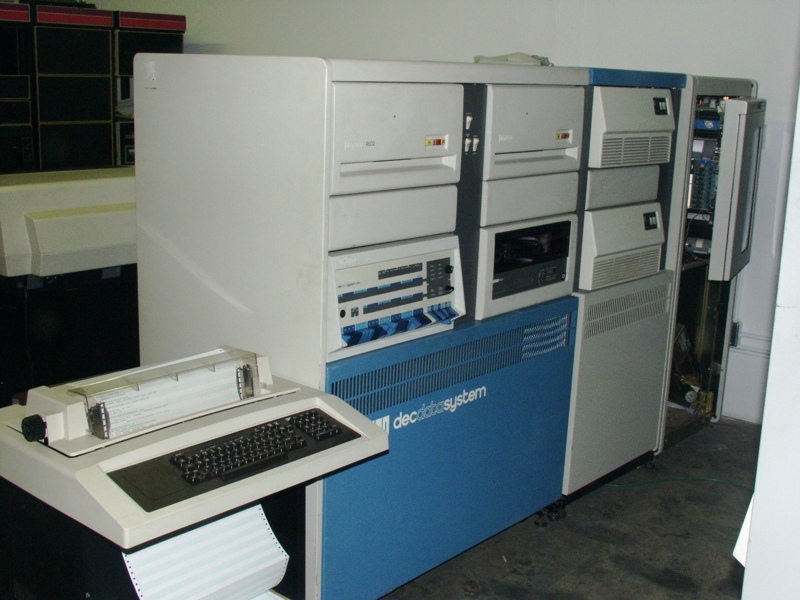

11/70 (Front view)

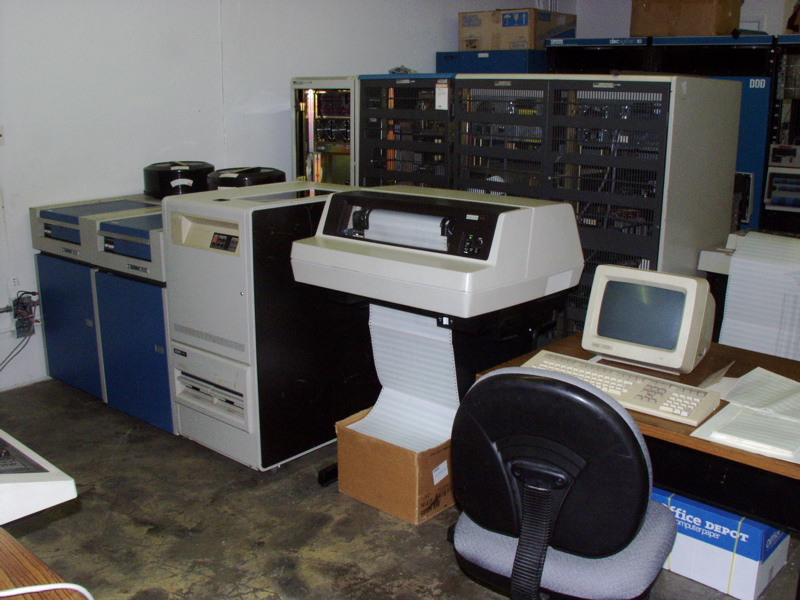

11/70 (Rear view)

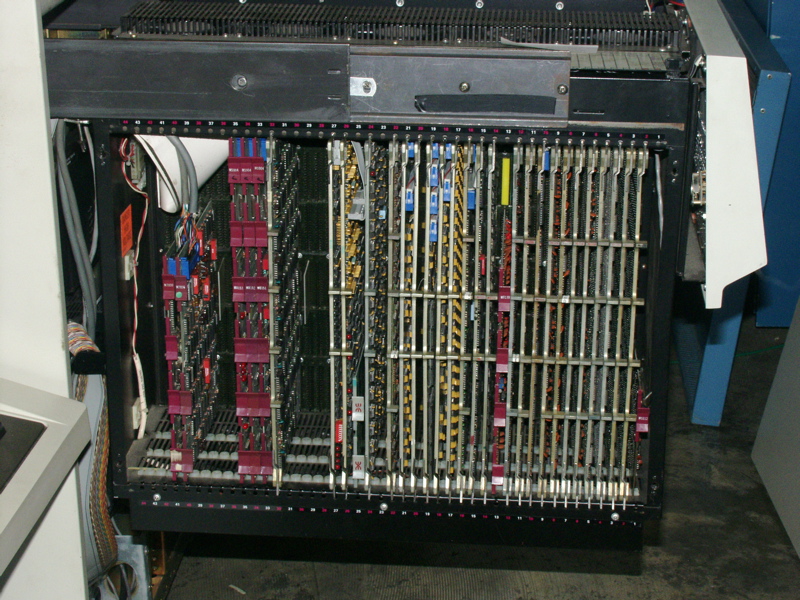

11/70 CPU
